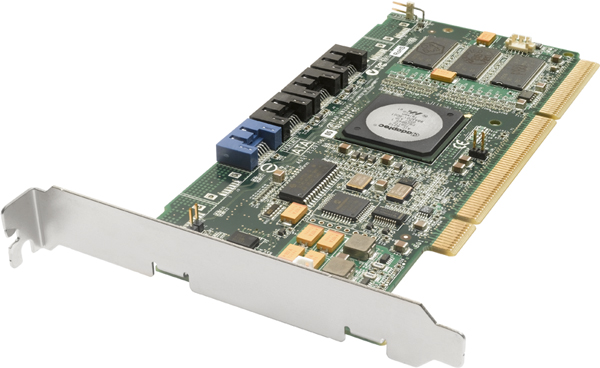

Adaptec SATA Serial ATA II RAID 2420SA 4-Port PCI-X HBA Card 2169300-R
Adaptec SATA Serial ATA II RAID 2420SA 4-Port PCI-X HBA Card 2169300-R
Supported Operating Systems
Microsoft Windows
Red Hat Linux
SUSE Linux
FreeBSD
Novell Netware
Solaris
SCO UnixWare, OpenServer
Benefits
High-performance storage
connectivity and data protection for servers and workstations
Customer Needs
Ideal for supporting
server and workgroup applications where high levels of sustained read and
write operations are required, such as video streaming, web content,
video-on-demand, security and surveillance, fixed content, and reference
data storage.
System Environment
Departmental and workgroup
servers and workstations
Key
RAID Features
Hot spares, RAID Level Migration, Online
Capacity Expansion, Optimized Disk Utilization, S.M.A.R.T and SNMP support
as well as the features from the Adaptec Advanced Data Protection Suite
including:
Striped Mirror (RAID 1E)
Hot Space (RAID 5EE)
Dual Drive Failure
Protection (RAID 6)
Copyback Hot Spare
Bus
System Interface Type
PCI-X 64-bit/133 MHz host
interface (3.3v only)
Internal Connectors
4 locking SATA
connectors
Data
Transfer Rate
Up to 3 Gb/s per
port
System Requirements
Intel or AMD architecture with
available 64-bit 3.3v PCI-X slot
Supports EM64T and AMD64 architectures
Package Contents
Adaptec Serial ATA II RAID
2420SA card
Four 1-meter Serial ATA
cables
Standard full size bracket
- Low-profile bracket also included
Quick Install Guide
RAID Installation CD
(bootable) including drivers and documentation
Adaptec Storage Manager
Installation CD including management software and documentation
