Supported Operating Systems
	Microsoft Windows Red Hat Linux SuSE Linux Novell NetWare

Benefits
	Low-cost Serial ATA 3Gb/s RAID card with HostRAID™ RAID 0, 1 and 10 for data protection and increased performance

Key Differentiators
	PCI Express x4 RAID 0, 1, 10, and JBOD Native Command Queuing (NCQ) Supports bootable arrays 48-bit LBA supports large capacity drives Low-profile form factor RoHS compliant

Customer Needs
	Ideal for desktop and workstations as well as entry-level servers requiring low cost SATA RAID 0, 1, and 10.

System Environment
	Small office and home office as a boot device for print, file, and storage servers.

Number of devices
	Up to 4 SATA II 3Gb/s or SATA I 1.5 Gb/s disk drives

Bus System Interface Type
	PCI Express 4-lane 2.5 Gb/s

External Connectors
	None

Internal Connectors
	4 stacked SATA connectors

Data Transfer Rate
	up to 3 Gb/s per port

System Requirements
	Intel or AMD Architecture with available PCI Express x4 slot

Package Contents

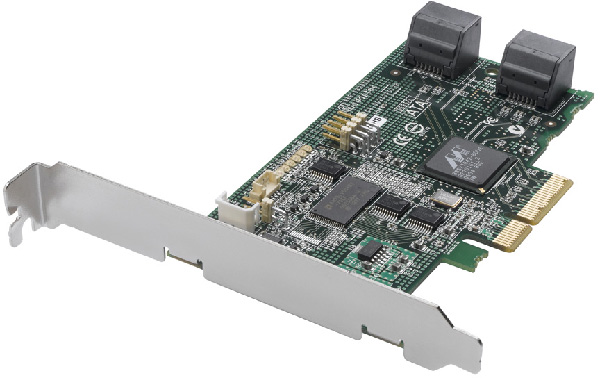

	Adaptec 1430SA controller with full-size bracket Four 1-meter Serial ATA cables Low-profile replacement bracket Quick Install Guide Bootable Installation CD containing: -- Operating system drivers -- Complete user documentation (pdf) Adaptec Storage Manager CD containing: -- Adaptec Storage Manager GUI software -- Complete user documentation (pdf)

Warranty
	3 years

Board Dimensions 2.5 inch H x 4.7 inch L 6.4 cm H x 11.3 cm L Operating Temperature 0° to 55° C Power consumption 0.9 amps@+5V
